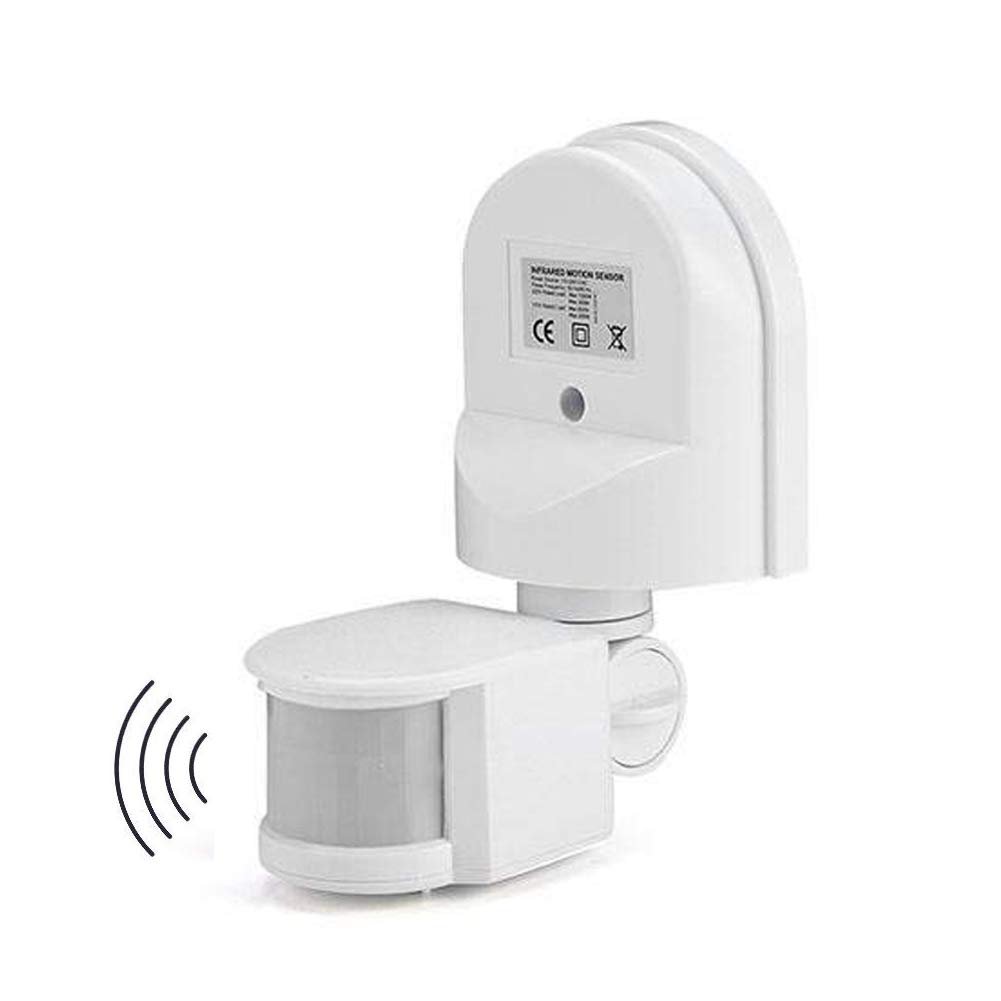

Quick Sense (Qs-11): 180` Wall-Mount PIR Motion Switch(Multiple Angle Rotatable) , White
The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source: 220 -240V/AC
Detection Range: 180°
Power Frequency: 50Hz
Working Temperature: -20~+40?
Ambient Light: 3-2000LUX (adjustable)
Working Humidity: <93%RH
Time-Delay: min: 10sec±3sec
Installation Height: 1.8m~2.5m
max: 8min±2min
Power Consumption: 0.45W (work)
Rated Load: 1200W (incandescent lamp) 0.1W (static)
300W(energy-saving lamp)
Detection Motion Speed?0.6~1.5m/s
Detection Distance: 5-12m (<24?) (adjustable)
FUNCTION :
? Can identify day and night: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
? SENS adjustable: It can be adjusted according to using location; low sensitivity with 5m for
detection distance; high sensitivity with 12m, it fits for large room.
? Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic (set time).
? Time-delay adjustment: It can be set according to the consumer’s desire. The minimum time is 10sec±3sec. The maximum is 8min±2min.
INSTALLATION :
? Switch off the power.
? Screw off the nail on the front cover. Open the wire hole. The power wire and the load wire are bored in the bottom.
? Fix the bottom on the selected position with the inflated screw.
? Connect the power and the load with the connection-wire column according to the connect-wire figure as following part.
? Fix the front cover of sensor, please screw the nail and switch on the power. So you can test it.
